Zero Differential Pressure Type/Pilot Operated 2 Port Solenoid Valve VXZ

Description

  • For air, water, oil, heated water, high temperature oil
  • Body material: Aluminum, resin, C37, Stainless steel
  • With One-touch fittings (resin body) type is available
  • IP65
Related Downloads
Product Catalog
2D CAD File
3D CAD File
DoC
Series Actuation Port size Orifice diameter (mmø)
VXZ N.C./N.O. ø10, ø12，ø3/8″
1/4 to 1		 10 to 25

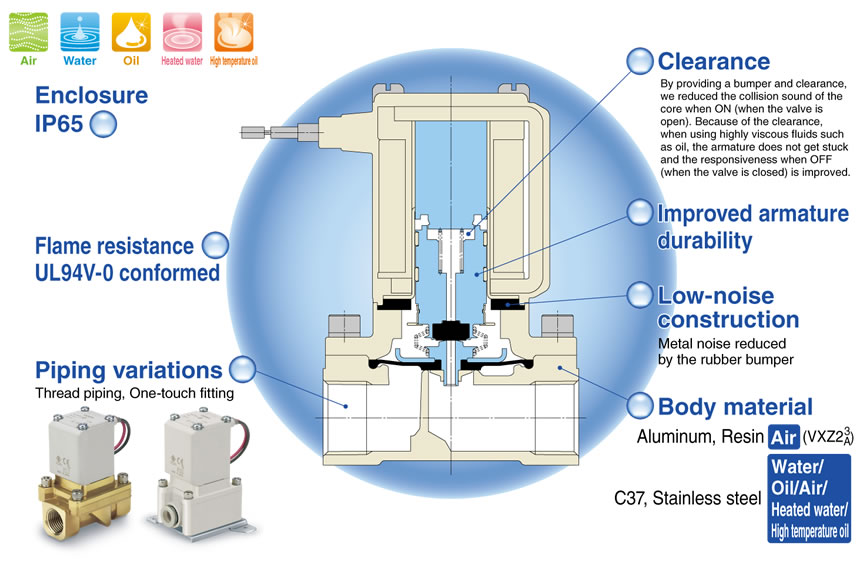

Features

Zero differential pressure typeCompact / LightweightVariation
Can be used at 0 m hydraulic head!
Min. operating pressure differential: 0 MPa (When the valve opens.)

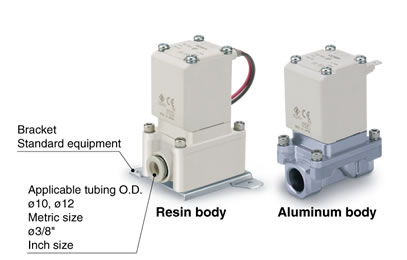

Body material: Aluminum*, Resin* (Built-in One-touch fittings)
Applicable fluid*：Air

Body material：C37, Stainless steel
Applicable fluid∗：Air, Water, Oil, Heated water, High temperature oil

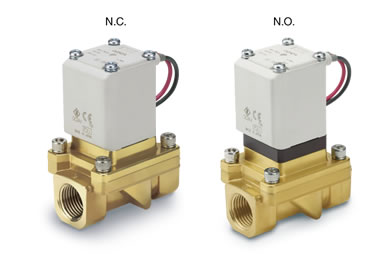

Valve type：N.C., N.O.

Enclosure：IP65∗
*Electrical entry “Faston” type terminal is IP40.

Built-in full-wave rectifier type
Improved durability
Service life is extended by the special construction.(compared with current AC specification)

Reduced buzz noise
Rectified to DC by the full-wave rectifier, resulting in a buzz noise reduction.

Improved OFF response
Specially constructed to improve the OFF response when operated with a higher viscosity fluid such as oil.

Low-noise construction
Specially constructed to reduce the metal noise during operation.
